Software Setup

Step 1: Installation​

The SDK is currently tested for Python 3.10 and above.

For Mac and Linux:

pip install aero-open-sdk

For Windows (using PowerShell):

python -m pip install --upgrade pip
python -m pip install aero-open-sdk

Option 2: install from source (fetch latest updates)​

  1. Clone the repository to your local machine:

    git clone https://github.com/TetherIA/aero-hand-open.git

  2. Navigate to the SDK directory:

    cd aero-hand-open/sdk

  3. Install the package in editable mode:

    pip install -e .

Step 2: GUI — Aero Hand Open Control App​

Launch the GUI from a terminal after installation:

For Mac and Linux:

aero-open-gui

For Windows:

python -m aero_open_sdk

Note: If your system can't find the command, ensure your Python environment's scripts directory is on PATH and that the package was installed into the active environment. For more troubleshooting Issues, refer at the end of the document under Troubleshooting section.

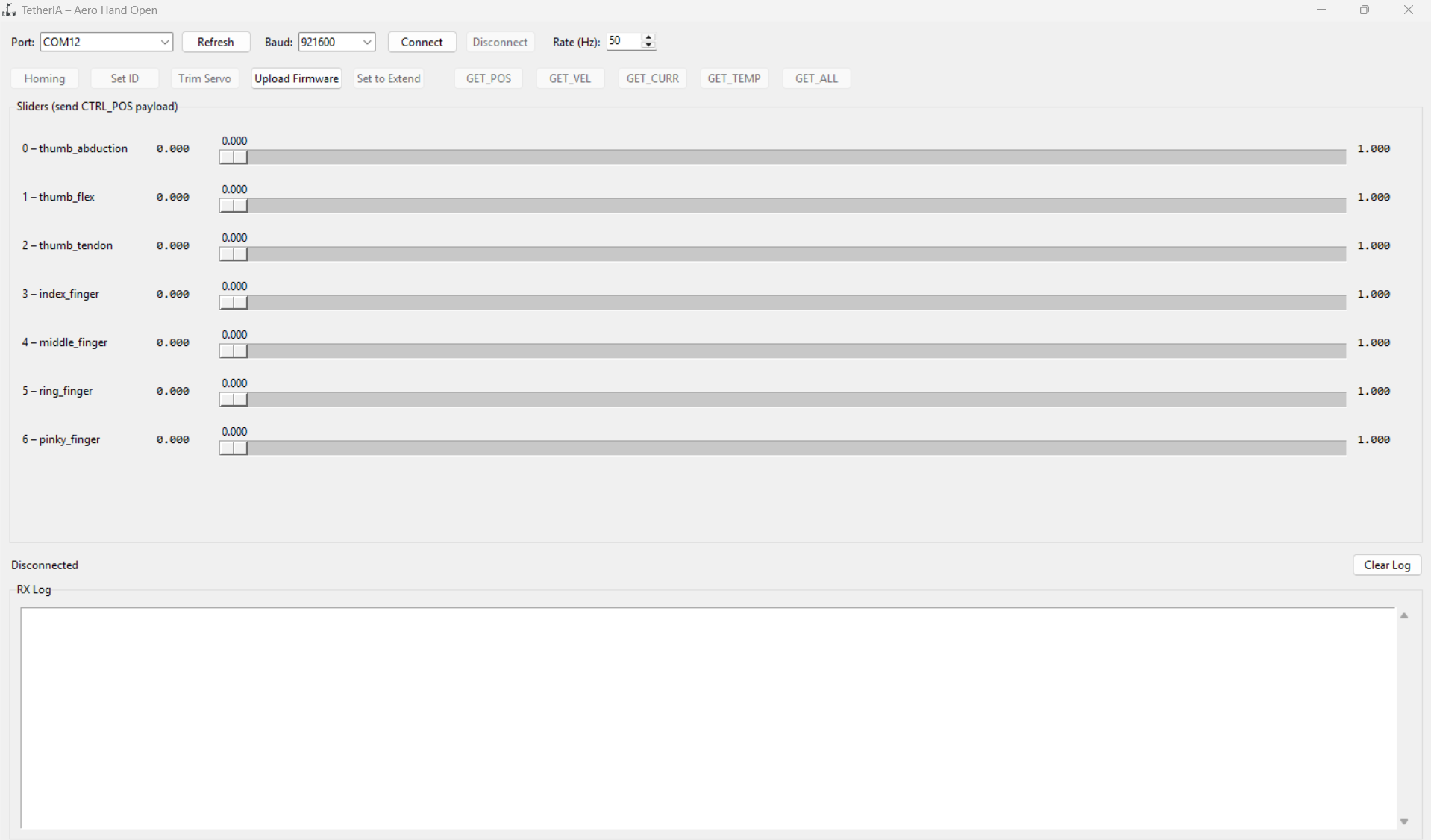

Screenshot of GUI

Find port​

Press the 'Refresh' button near the Port selection; a dropdown menu will appear. If you do not have multiple serial devices connected on a Windows machine, refreshing will automatically select the correct COM port. This is convenient when using only one hand. If you have multiple hands, unplug all devices and plug in one at a time to identify which COM port corresponds to each hand (right or left).

On Linux, after refreshing, you will find the device path such as /dev/ttyACM0, /dev/ttyACM1, or /dev/ttyUSB* and then connect the hand using the correct port.

Homing​

Once the hand is connected, you will see a Homing button in the GUI. Press this button to start homing. Make sure the hand is in a safe position with no obstacles in front of it. We recommend running homing if the motion is not as expected. During homing, the hand will not respond to other commands and will need some time to complete the process. When finished, you will receive an ACK in the GUI confirming homing is complete.

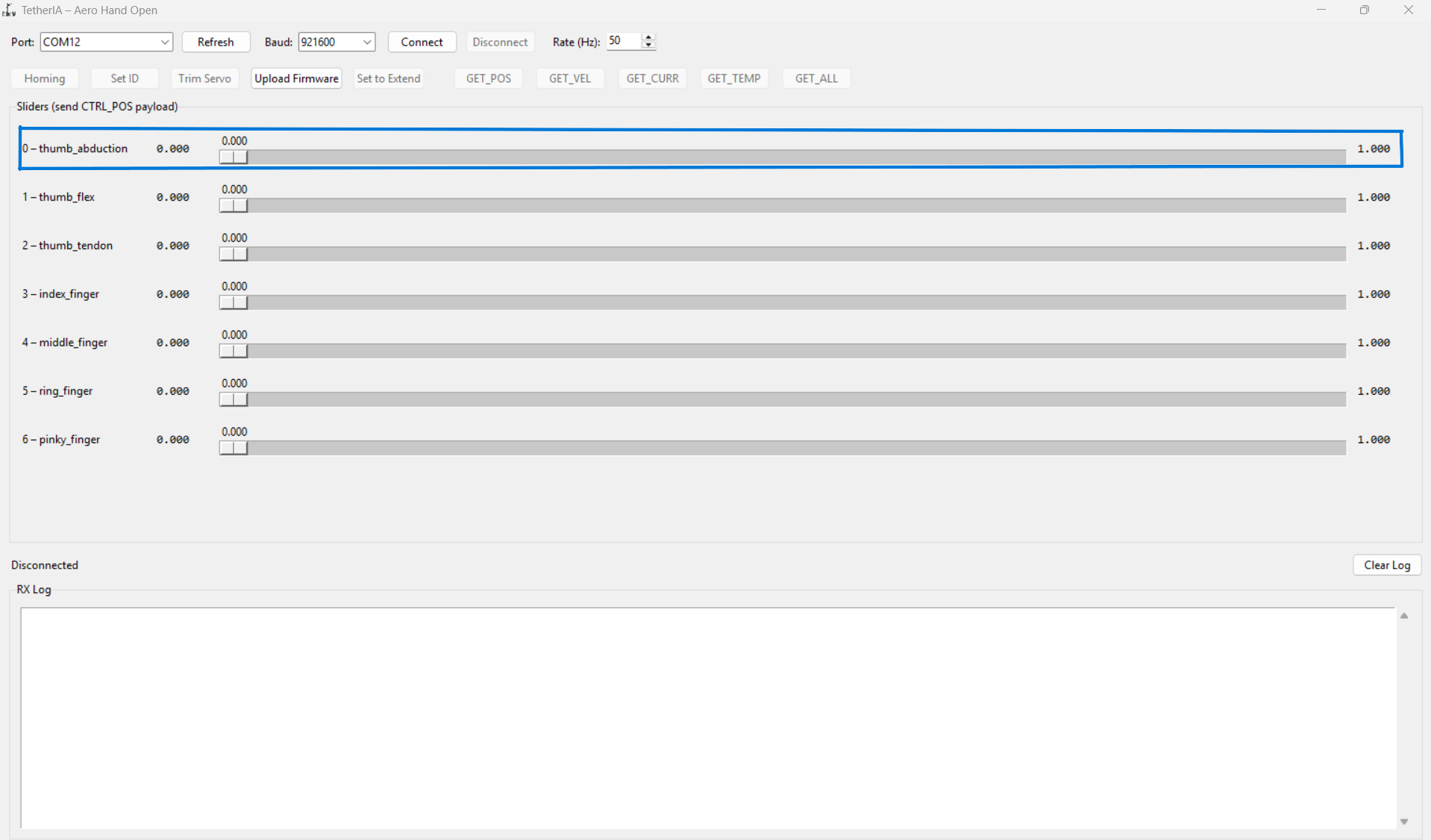

Slide slider bar for position control​

In the GUI, you can control the position of each finger or actuator using the slider bars. Each slider represents a channel (finger or thumb joint) and allows you to set its position from 0 (fully open/extended) to 1 (fully open/grasp).

Screenshot of GUI

Simply click and drag the slider to your desired value, and the hand will move to that position in real time. This is useful for testing individual finger movements and for manually positioning the hand to some pose of your choice.

Step 3: Python Control & Examples​

Aero Hand connects to the host PC via a USB-C cable. In order to operate the SDK on Windows machine, you must need to specify the correct serial port for your device.

Find port​

Linux​

You can initialize the hand directly if you are running and working only on one hand :

from aero_open_sdk.aero_hand import AeroHand

aero_hand = AeroHand()

Windows​

On Windows, the device connected to the USB port will appear as COM port like COM12 or COM3. You can find the correct port by checking the Device Manager under "Ports (COM & LPT)". The device would be listed something like USB Serial Device (COM12).

You can then Initialize your hand with the detected COM port:

from aero_open_sdk.aero_hand import AeroHand
aero_hand = AeroHand(port="COM3")

Once you know your device's port from the steps above, you can run any example file from the sdk/examples folder to test or control your Aero Hand Open.

Run examples​

run_sequence​

If homing is completed properly and the hand is in a safe position, running the run_sequence.py example will move your hand through a series of poses: open palm, pinch each finger one by one, open palm, peace sign, open palm, rockstar sign, and back to open palm.

You can also create any custom trajectory you want and use hand.run_trajectory to execute it.

power_grasp​

When you run the power_grasp.py example, you can use the SPACEBAR on your keyboard to toggle the hand between open and closed grip poses. This allows you to quickly switch the hand's state for testing or demonstration purposes.

You can also change the open_pose and grip_pose to any pose that you want to go and then call the hand.set_joint_positions. Make sure to check the joint constants in the SDK, as your input values must be within the supported range for each joint else the inputs will be clipped to the upper and lower limit range.

Explore more examples​

More examples are available at the sdk folder

Troubleshooting​

Installation Fails (pip install error)​

If installation fails, try the following steps:

  • Check your Python version:

    Make sure you have Python 3.10 or higher installed.

  • 🔧 Upgrade pip to the latest version:

    Our package requires an up-to-date version of pip.

    You can upgrade pip with:

    pip install --upgrade pip

On Windows, if you see error like "pip is not recognized", use the py launcher command instead:

py -m pip install --upgrade pip

Path Mismatch on Windows​

  • You may not have the Python Scripts path added to your system PATH environment variable.

  • To fix this, you can either:

    1. Add the Python Scripts directory (e.g., C:\Users\<YourName>\AppData\Local\Programs\Python\Python310\Scripts) to your system PATH.
    2. Or use the py launcher command to launch the GUI after installation:
      py -m aero_open_sdk
    3. Create a virtual environment and install the package there.
      python -m venv venv
      .\venv\Scripts\activate
      pip install aero-open-sdk
      aero-open-gui

Troubleshooting Port Issues​

Linux​

On your Linux system , your Aero Hand open will show up as a device like /dev/ttyACM0 or /dev/ttyUSB0. You can list down all the ports with :

ls /dev/ttyACM* /dev/ttyUSB*

Note: We recommend using a Persistent device path because the device names like /dev/ttyACM0 can change each time you connect and can also be changed if you have multiple USB serial devices connected to your system. Also this will be helpful if you are working on more than 1 Hand.

To get a persistent name , use the by-id symlink instead:

ls -l /dev/serial/by-id/

This will show you a list of all the connected serial devices with more descriptive name. Look for the one that corresponds to your Aero Hand open. It will look something like:

usb-Espressif_USB_JTAG_serial_debug_unit_D8:3B:DA:45:C8:1C-if00

Then initialize your hand using that path while running the example code from SDK:

from aero_open_sdk.aero_hand import AeroHand

aero_hand = AeroHand(
  port="/dev/serial/by-id/usb-Espressif_USB_JTAG_serial_debug_unit_D8:3B:DA:45:C8:1C-if00"
)

This ensures that connection always points to the correct device, even if you unplug and replug the same Aero Hand Open or change the USB port.

If you see a permission error when connecting to the serial port (e.g., /dev/ttyACM0), do the following:

  1. Find your username:
    whoami
  2. Add your user to the dialout group (replace yourusername with the output from whoami):
    sudo usermod -a -G dialout yourusername
  3. Restart your system (or log out and log back in).
  4. After restart, open a terminal and run:
    groups
    You should see your username and dialout listed.
  5. Try connecting to the serial port again in the GUI.

If you still see permission errors, check device permissions with:

ls -l /dev/ttyACM0

You may need to temporarily set permissions:

sudo chmod 666 /dev/ttyACM0

Windows​

Since windows does not have a /by-id/ system like Linux, so the COM Number can change if you plug the device in a different USB port but to make it permanent, you can assign a fixed COM Number by following the steps given below:

  1. Unplug all the serial devices connected to USB port.
  2. Plug in the Aero Hand and open Device Manager.
  3. Find it under Ports (COM & LPT).
  4. Right-click → Properties → Port Settings → Advanced.
  5. In COM Port Number, select an unused port (e.g., COM5).
  6. Click OK to save.

You can now always use this COM port when initializing the SDK.

Common Cable Issues: Slack, Loose, or Derailed from Pulley​

If the cable gets slack or loose during operation and you reconnect it, but the hand's motion is not correct, try performing the homing procedure again. Make sure to place the hand in a safe pose with no obstacles in front, as shown in the image below, before starting homing.

Homing Pose
